Capabilities Electronic Design Schematic Capture PCB Layout Mechanical Engineering Industrial Design Software Development Firmware Prototypes PCB Fabrication Assembly

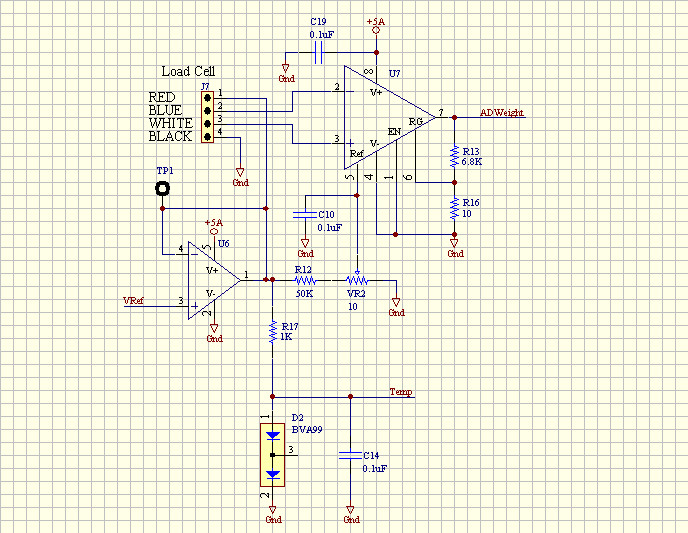

electronic design This is where it all starts. This is called schematic capture, where I capture the design goals for your project into a schematic diagram. Not sure what the design goals actually are? No problem, I can help you with that too. I will select standard off the shelf components, so alternate parts are always readily available from many vendors.

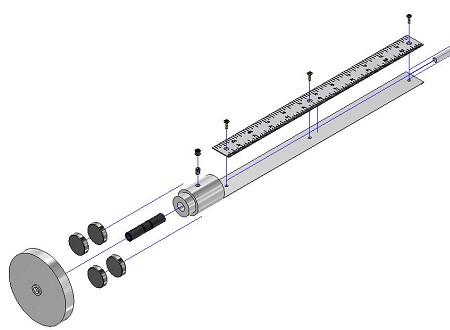

PCB layout, mechanical, and industrial design After the schematic capture has been validated, the design transfers to the PCB Layout. Here I design the actual PCB. Uasually concurrent with the mechinical and industrial design assuring that all the sub assemblies fit and operate properly within the enclosure. I can create multi-layer, thru hole, SMT, rigid, flex, controlled impedance, RoHS, panelized, rails, break away, etc.

software development Next I build a unit to become a platform for software/firmware development. I include in the design an ISP and/or JTAG port to facilitate this effort. During production the port becomes a convenient way to program and test the device. I develop in the following programming languages: c, c++, c#, Delphi, Pascal, and Assembler.

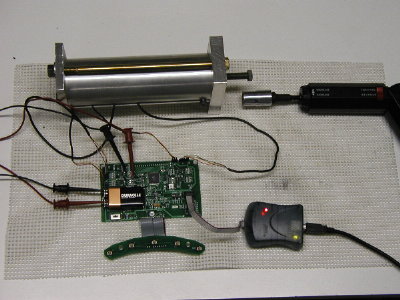

prototypes Convenient assembly and test services turn that design into a working prototype. Any testing jigs or tooling are designed and fabricated as required. Many types of prototypes can be created from proof of concept to focus group evaluation to preproduction first article. The latter may be sent for regulatory agencies testing/approval/listing.

deliverables A comprehensive documentation package is provided, including all CAD databases in their native format, product drawings, BOM, assembly instructions, test procedures, etc.
